KEYENCE Shadowgraph

The Keyence IM Series Shadowgraph is a new measurement system that performs dimensional measurement with simple “Place and Press” operation.

Measure 300 part features in seconds.
Eliminate subjectivity between operators.
Automatic data recording and generation of test reports.
Easy-to-use software, fast processing and accurate measurements.

View Catalogue

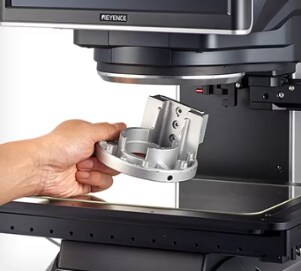

Easy Measurement for Complex Parts

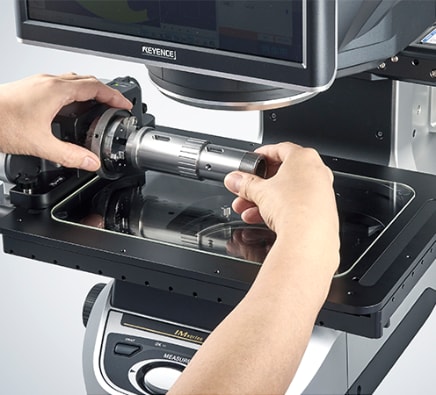

Optional Rotary Unit for 360' Measurement

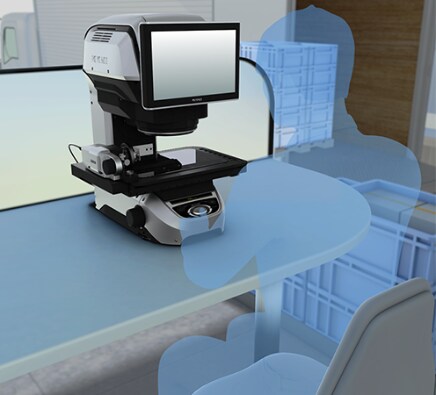

Use Case: Incoming Inspections

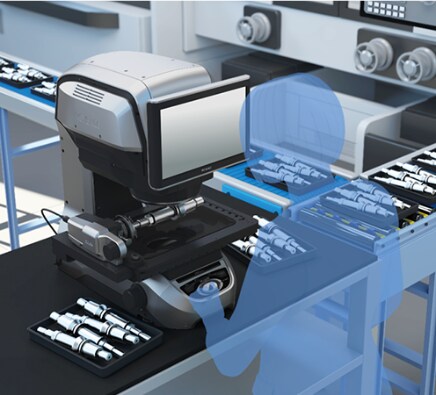

Use Case: In-process Inspections of Samples and Parts

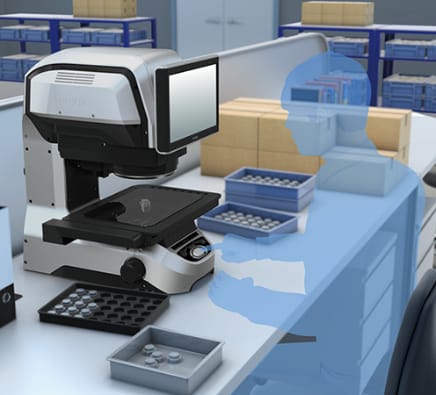

Use Case: Pre-shipping Inspections

Fast

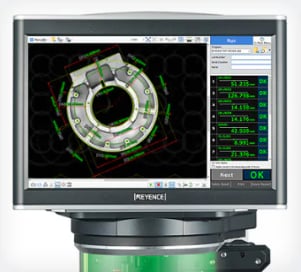

With a KEYENCE Shadowgraph, you can automatically measure up to 300 part features on up to 100 parts in seconds.

Easy

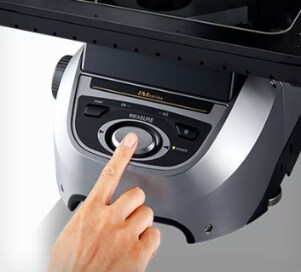

The intuitive interface of the shadowgraph means anyone can carry out part inspection simply by placing the parts on the stage and pressing the 'measure' button.

Consistent

Achieve consistent, high-accuracy measurement results regardless of the operator. No specialist expertise required.

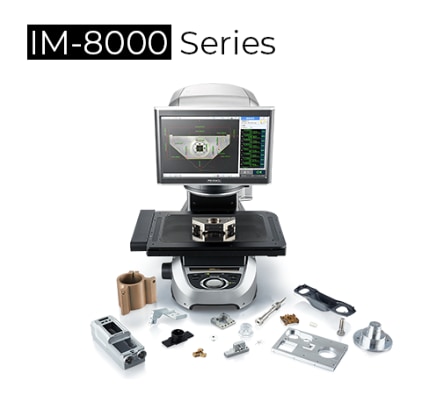

For more information on the IM-8000 Series KEYENCE Shadowgraph, download the catalogue.

Download Catalogue

RECOMMENDED ITEMS

IM-8000 Series Image Dimension Measurement System Catalogue

[File type]PDF:7.85MB
