Instant Measurement Series - The Next Generation Shadowgraph

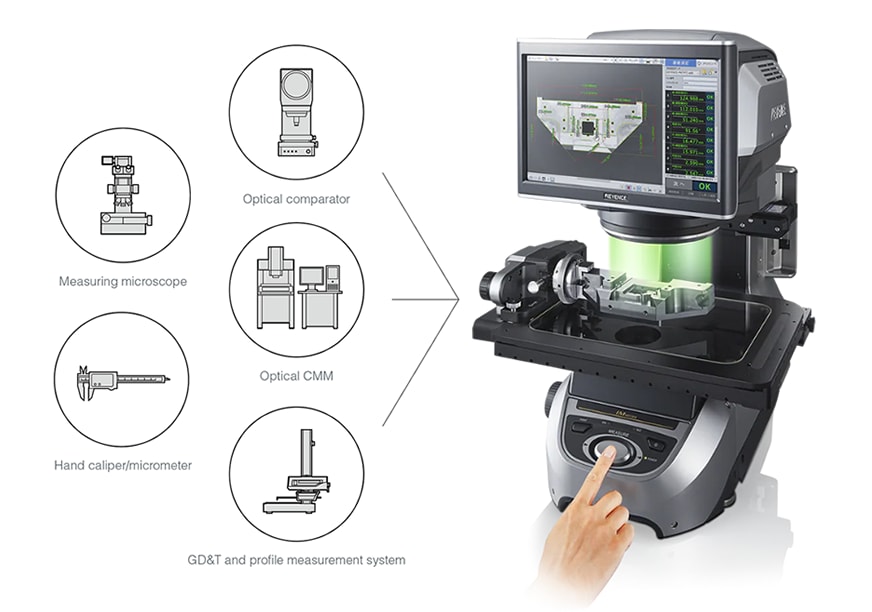

Incorporating the functionality of numerous conventional devices including:

- Shadowgraph - Optical Comparator - Profile Projector - CMM - Measuring Scope - Caliper -

The IM Series Image Dimension Measurement System is a completely new measurement system that performs dimensional measurement with a simple “Place and Press” operation.

View Catalogue

Rapid Dimension Measurement and Analysis
Major Problems in Industrial Measurement:
- Slow measurement up to minutes
- Inconsistent results
- Complicated processes and data collection
Solutions that the IM Series Offers:
- Measure up to 300 dimensions on a part within 3 seconds
- 3 build-in automated functions eliminate operator error
- Intuitive interface allows easy set up and data storage

RECOMMENDED ITEMS

IM-8000 Series Image Dimension Measurement System Catalogue

[File type]PDF:7.85MB
