Measurement 1Triangulation Laser Displacement Sensor

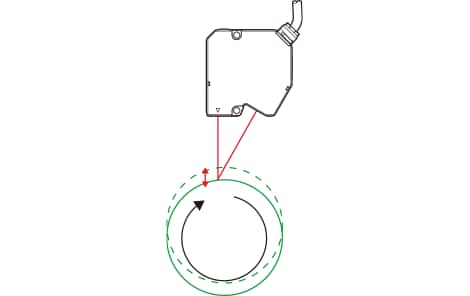

The laser is pointed at the apex of the circle to capture fluctuations in distance through high-speed sampling.
KEY POINTS
- Measurement must be performed at a sampling rate of at least ten times the rotation speed.
- Errors increase as the shaft diameter decreases because the apex position shifts to the left or right due to eccentricity.
LK-G Series
- Triangulation method.
- World's fastest sampling rate, 392 Khz.
- 12 Sensor heads can be connected.
