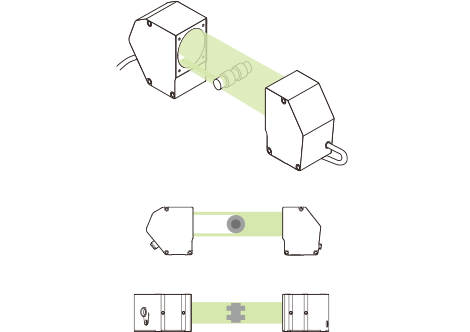

Measurement 22D Thrubeam Optical Micrometer

The 2D optical projection method makes it possible to measure the outer diameter of multiple points as well as the minimum/maximum values over specified ranges.

KEY POINTS

Even if the target is tilted, outer diameter can be measured accurately by utilising the position correction function.

TM Series
  • 2D Telecentric Optical Method.
  • World's first inline profile projector.
  • Up to 16 simultaneous measurements.
