Measurement 3Thrubeam Optical Micrometer

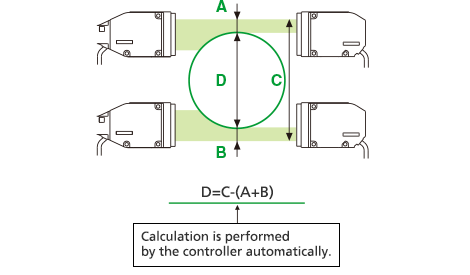

Outer diameter is measured by placing a target between two sensor heads.

KEY POINTS

Parallel alignment of the sensor heads is important to prevent values from changing if the target moves to the left or right.

LS Series
  • 1D Telecentric Optical Method.
  • No moving parts for long service life.
  • Fastest sampling rate in its class at 16 kHz.
