Measurement 2Reflective Laser Displacement Sensor

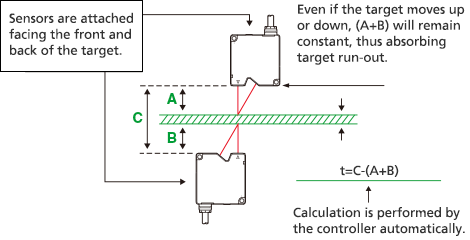

Thickness is measured by passing a target between two sensor heads.

KEY POINTS

Optical-axis alignment or span adjustment are important to ensure that A+B is fixed even if there is workpiece run-out up or down.

LK-G Series
  • Triangulation Method.
  • World's fastest sampling rate 392 kHz.
  • 12 sensor heads can be connected.
