Safety Interlock Switches

Safety door switches and safety interlock switches are safety components that can be installed on safety gates and doors to detect entry. This lineup includes models that use the power-to-release and power-to-lock methods. Non-contact types are also available that eliminate issues traditionally caused by dust, debris, and long term wear and tear.

Download Catalogues

Products Lineup

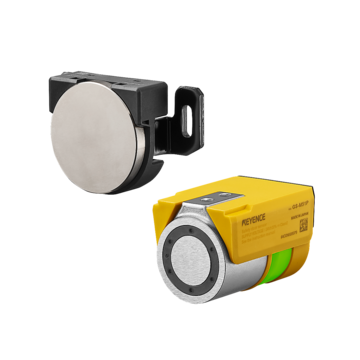

GS-M series - Safety Interlock Switches

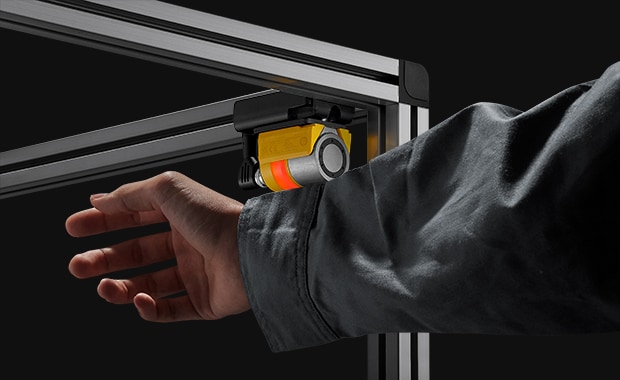

Safety interlock switches are safety devices used for checking whether movable guards such as safety fence doors and covers are opened or closed. KEYENCE’s GS-M Series safety interlock switch uses an electromagnetic locking principle and flexible actuator to prevent door rattling and misalignment for easy locking. The ultra-compact design can be used with any kind of door and can be installed anywhere. The GS-M Series offers superior safety in addition to the usability and reliability required for manufacturing sites without hindering productivity.

Catalogues Price

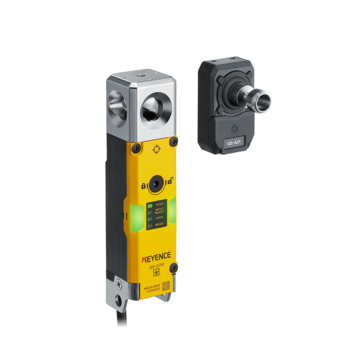

GS series - Safety Interlock Switches

Large indicators, compact size, quick & simple mounting, built-in cascading, and more.

Catalogues Price

Safety interlock switches are used as interlock devices that can prevent machine operation or startup in an unsafe situation, such as when a door or guard is open. Interlock devices with a locking function can also prevent doors or guards from being opened while the machine is in operation.
Safety interlock switches (interlock devices) are an important factor in ensuring machine safety, with many relevant safety standards. Two of the most typical standards are ISO 14119 and ISO 13849, and safety performance that meets these standards is essential.

Benefits of Safety Interlock Switches

Safety interlock switches are used on safety doors, fences, and guards that physically separate workers from hazards. These devices are essential to ensuring reliable safety precautions.

Sometimes working in dangerous areas is necessary, such as during equipment maintenance or troubleshooting. In such situations, safety interlock switches for doors and movable guards are needed to ensure both worker safety and productivity.
Locking types can also reduce risks while the machine is in operation and prevent the machine from stopping unnecessarily.

Locking-type safety interlock switches are available in power-to-release or power-to-lock models. These types can be used in a variety of ways depending on the situation and hazard.

Power-to-release models use a spring to lock the device, ensuring the device remains locked even when the power is turned off. This means these models are ideal for protection against large robots, rotating objects, and other hazards that cannot be stopped immediately due to inertia. Power-to-lock models, however, use a powered solenoid to lock the device, meaning, the lock is released immediately when the power is turned off. These models are useful in situations where a lock is necessary to protect workers from a hazard that can be immediately shut down if the power is interrupted, or to protect the operation of the machine.

Non-contact safety interlock switches are most commonly used when dust and debris must be avoided to prevent product contamination. These types eliminate any risk of dust and debris because door conditions can be detected with no contact between the sensor and the actuator.

Because non-contact types do not have a locking mechanism, no wear debris is created. This makes these types ideal for clean environments and food industry settings where a sanitary manufacturing environment is required. The surface of these types is also relatively smooth, preventing foreign particles from adhering to or accumulating on the sensor or actuator. Non-contact types also boast a high enclosure rating (IP65/67/69K), ideal for withstanding the environment and cleaning.

Safety Interlock Switch Case Studies

Safety precautions for processing machines

For processing machines, safety precautions are required to detect intrusion into the processing area. Machines require door locks and other measures for quickly responding to the actions of workers, such as when entering the processing area during operation. Additional safety precautions such as slowing down the operation of the machine when working in the processing area are also important.
Power-to-release safety interlock switches (GS-50 Series) are recommended for processing-machine doors. After the machine stops completely, an unlock signal is sent to the safety interlock switch to unlock the door. With a power-to-release safety interlock switch, the door will remain locked even when the power is turned off. This will prevent workers from entering the processing area until the machine’s inertial movements completely stop. Once the worker closes the machine door, the operation can be resumed.

Safety precautions for SCARA robots (horizontal multi-joint robots)

Used in a variety of fields including assembly lines, SCARA robots are known for their space-saving design and high-speed operability. However, because of the limited space used for installation, such as inside cases, the robots can be dangerous if operated while a worker is inside the case with the robot. Workers entering the transfer areas between machines is also dangerous.
A KEYENCE safety interlock switch (GS Series) can be used to monitor the status of doors in such situations. If a door is opened, the robot is stopped and an interlock state is enforced. Once the worker exits the case and closes the door, robot operation can be resumed. Safety light curtains in the transfer area between machines can also be used to turn off the OSSD if a worker is present. This makes it possible to prevent the robot from operating while workers are inside the case.

Reducing costs and improving efficiency with cascade connections

For large machines with numerous doors, individual controller cables are required, making the wiring for safety devices very complicated. Such situations can also be troublesome due to the limited number of diagnostic methods for troubleshooting, causing the machine to be stopped for unnecessarily long periods and increasing maintenance and repair costs.
KEYENCE’s GS Series Safety Interlock Switches offer cascade connections between contact emergency stop switches and safety interlock switches. This enables a unified safety output for a reduced number of inputs and less wiring. Cascade connections also comply with safety standards such as Category4 and PLe (ISO 13849‑1). (Up to 30 non-contact types or 25 locking types can be connected.)

This site includes information on machine safety standards and risk management. Also learn about ISO international standards, safety precautions for industrial robots, safety equipment functions, and how to choose an appropriate device.

More Details

Frequently Asked Questions About Safety Interlock Switches

Safety interlock switches are used to increase machine safety and reduce risks. Machines are generally enclosed by a fence or similar equipment as a basic safety precaution (separation-based safety). However, if it is necessary to get close to a machine for troubleshooting or maintenance, workers must stop the machine to enter the fenced area (stoppage-based safety). Safety interlock switches can be used to check the door status in such situations.
For example, a safety interlock switch can be used to lock the door and keep it from being opened while the device is in operation, preventing accidental operation if a worker opens the door and enters the fenced area without turning off the machine first.

Power-to-lock models unlock when the power is turned off, while power-to-release models remain locked even without power. Because of this, power-to-lock models are used with machines that are not affected by inertia and are able to stop immediately when a door is opened or where a safe distance can be maintained. Power-to-release models use a spring to remain locked even when the power is turned off, so these devices are often used to ensure worker safety with machines affected by inertia, such as rolling machines. Power-to-lock models also unlock immediately in the event of a malfunction because the power to the solenoid is no longer supplied. Power-to-release models, however, will remain locked even after power is no longer supplied. This makes power-to-release models useful to ensure safety in the event of a power failure.

The standard used for designing and selecting interlocking devices such as door switches is ISO 14119, “Safety of machinery — Interlocking devices associated with guards — Principles for design and selection.” This standard defines the following categories (levels) for encoding actuators.
• Low: 1 to 9 coding patterns
• Medium: 10 to 1000 coding patterns
• High: 1001 or more coding patterns
With specific actuator teaching, the GS Series can support the High encoding level for more than 1000 different coding patterns, allowing use with minimal design constraints.
