HDR (High Dynamic Range)
- HDR (High Dynamic Range) Function
- Mechanisms Behind Obtaining 16-Bit HDR Data
- Advantages of HDR [1]
- Advantages of HDR [2]
HDR (High Dynamic Range) Function
With KEYENCE's VHX Series Digital Microscope, images can be captured with 16-bit or 65,536 levels of colour gradation.
This results in images with 256 times more colour information than conventional 8-bit images and increases the number of representable colours by over 16 million times. All of this data is then processed by the VHX, which optimises the colour, brightness, contrast, and texture, and then displays the most suitable image given the object being observed.
Samples such as low-contrast and reflective targets can be easily imaged in high detail.
- A
- The colour of the ink can be vividly depicted
- B
- Surface texture can be observed with better detail
Mechanisms Behind Obtaining 16-Bit HDR Data
In order to capture a 16-bit image, the camera will vary the shutter speed and take multiple images at different brightness levels. While there are 16-bits of information associated with each image, only 8-bits of data can be displayed at a given time. A user can specify which 8-bits of information to display, so that the appropriate feature or detail is clearly visible.

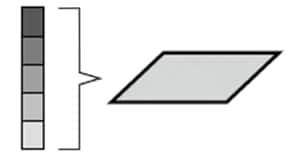

Gradations obtained using a single shutter speed
- Difficulties
- Narrow brightness range results in areas of an image with glare and dark spots (over and under saturated pixels).
- Subtle contrast cannot be rendered.
- Colours appear less vivid, and it is difficult to differentiate between similar shades.

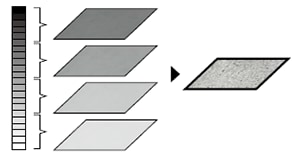

Gradations obtained using multiple shutter speeds
- Solutions
- Wide range of brightness levels eliminate glare and under-exposed areas.
- Minute surface features can be seen in sharp contrast.
- True colour appearance with subtle variations can be reproduced.
High performance graphics engine
The VHX Series contains KEYENCE's most advanced graphics engine, the REMAX V, capable of rendering RGB components with 16-bit gradation, even while viewing a live image.
This processor has been designed specifically to maximise the capabilities of the VHX functions - speed, resolution, real-colour reproduction and operation.
Advantages of HDR [1]
The entire target can now be observed with consistent illumination throughout; from dark crevices to areas with overpowering glare.
Structures that have almost no contrast can be observed in detail.
Easily render detailed structural images of targets with low contrast.
Advantages of HDR [2]
Even detailed images of transparent targets can be accurately captured.
Targets with subtle colour differences can now be easily distinguished.
