Outer / Inner Diameter
Outer diameter measurements can be performed at a single position, in multiple axes, or across an area to understand ovality and min/max OD. Similarly, there are varying levels of inspection available for inner diameter. You can browse the most common methods for measuring OD and ID below, or feel free to request a consultation with a local measurement expert.

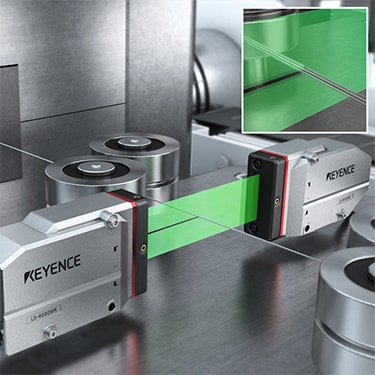

Thrubeam micrometres allow for high-speed measurement of wire OD without being affected by vibration.
High-speed optical micrometer
LS-9000 series

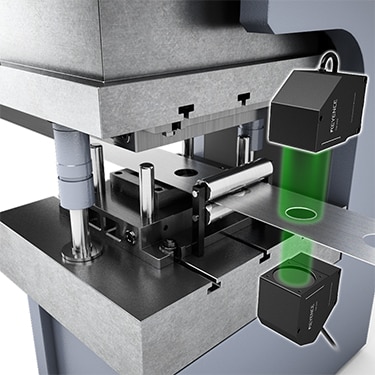

2D thrubeam sensors can measure hole diameter after stamping inline.
High-speed 2D Optical Micrometer
TM-3000 series

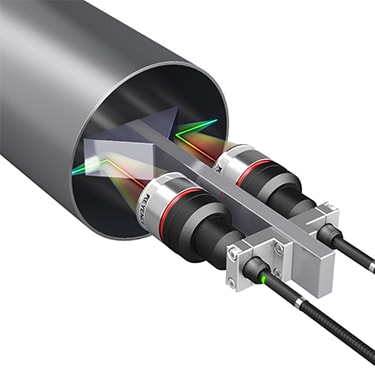

With small sensor heads and a mirror fixture, confocal sensors can give an accurate measurement of pipe ID.
Confocal Displacement Sensor
CL-3000 series

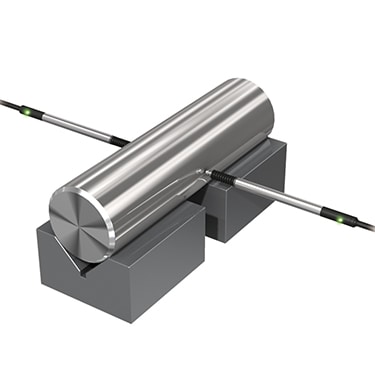

Check outer diameter on machined parts without influence from oil or other surface contamination.
High-Accuracy Digital Contact Sensor
GT2 series
