Shape / Profile
When selecting a sensor for 2D measurements, the first step is to choose a method for generating a profile of the target. This can be performed by scanning a 1D sensor over a surface, using a laser line, or working from a 3D image. The target material, shape, and size will all play a role in determining the best fit. Check out some typical methods below, or request a free consultation with a measurement expert.

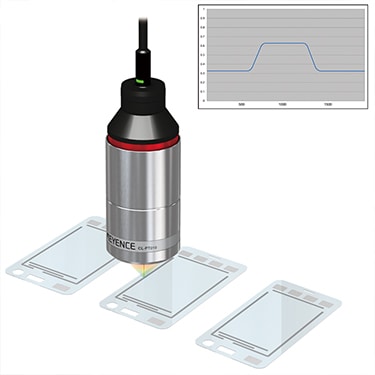

Measure fine details on touch panels regardless of surface finish with confocal sensors. With a beam spot of 3.5μm, even the smallest features can be measured.
Confocal Displacement Sensor
CL-3000 series
![](/img/products/series/AS_97930_M.jpg)
![](/Images/shape_profile_img_01_1826168.jpg)

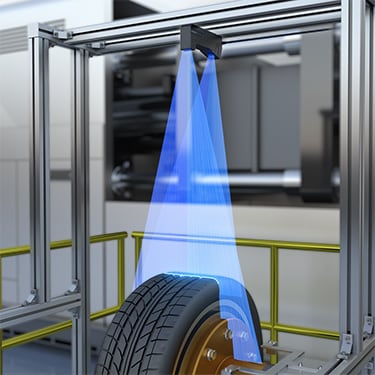

Profile tire treads and sidewalls with multiple 2D laser profilers.
2D/3D Laser Profiler
LJ-X8000 series
![](/img/products/series/AS_104891_M.jpg)
![](/Images/shape_profile_img_08_1913264.jpg)
Using 2D thrubeam sensors, medical balloons can be inspected inline at high-speed.
High-speed 2D Optical Micrometer
TM-3000 series
![](/img/products/series/AS_49499_M.jpg)
![](/Images/shape_profile_img_04_1826171.jpg)

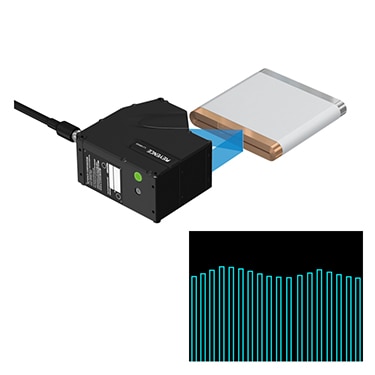

Inspect for lamination misalignment after winding. With a minimum X-resolution of 2.5 μm, the LJ-X8000 Series accurately measures the profile of each electrode.
2D/3D Laser Profiler
LJ-X8000 series
![](/img/products/series/AS_104891_M.jpg)
![](/Images/shape_profile_img_05_1873890.jpg)
Provide feedback about disconnected locations in electrodes before lamination. Accurately acquire the profile of electrode terminals to perform high-accuracy inspection of edge locations.
2D/3D Laser Profiler
LJ-X8000 series
![](/img/products/series/AS_104891_M.jpg)
![](/Images/shape_profile_img_06_1873891.jpg)

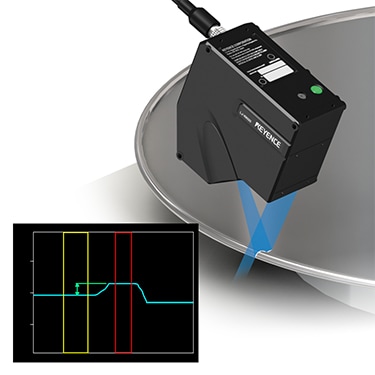

Measure the profile of a wafer edge. By selecting one of the inspection tools such as Height Difference/Width or Angle, users can start measurement easily. The high-resolution image capturing using 3200 points/profile achieves highly accurate profile measurement that was impossible with conventional methods.
2D/3D Laser Profiler
LJ-X8000 series
![](/img/products/series/AS_104891_M.jpg)
![](/Images/shape_profile_img_07_1873892.jpg)

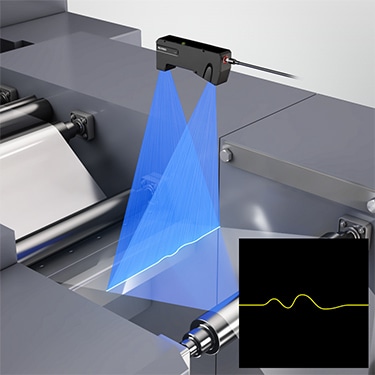

Film curvature and wrinkling measurements are performed using a blue laser with a maximum width of 720 mm. Measurement is possible even for transparent targets thanks to the wide dynamic range of the CMOS sensor.
2D/3D Laser Profiler
LJ-X8000 series
![](/img/products/series/AS_104891_M.jpg)
![](/Images/shape_profile_img_10_1956442.jpg)
